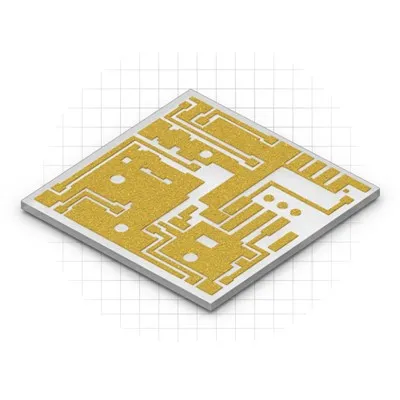

Thick Film Ceramic Substrates

Thick film ceramic substrates yog cov khoom siv tshwj xeeb siv hauv cov khoom siv hluav taws xob thiab cov khoom siv hluav taws xob. Lawv muaj cov txheej txheem ntawm cov khoom siv ceramic, feem ntau yog alumina (Al2O3), nrog cov khoom siv hluav taws xob thiab insulating tso rau ntawm lawv los ntawm kev tshuaj ntsuam luam ntawv. Cov substrates no ua lub hauv paus rau mounting thiab interconnecting hluav taws xob Cheebtsam.

Cov ntsiab lus tseem ceeb ntawm Thick Film Ceramic Substrates

1. Cov khoom xyaw

Cov khoom siv hauv paus feem ntau yog alumina (Al2O3), xaiv rau nws cov thermal conductivity zoo heev, txhua yam muaj zog, thiab hluav taws xob rwb thaiv tsev. Lwm cov ntaub ntawv ceramic kuj tseem siv tau, nyob ntawm daim ntawv thov tshwj xeeb.

2. Txheej Txheem Luam Ntawv

Thick film technology siv cov txheej txheem ntawm conductive, resistive, thiab dielectric pastes rau ceramic substrate los ntawm cov txheej txheem luam ntawv. Cov txheej txheem no tso cai rau kev tso cov ntaub ntawv no hauv cov qauv uas tau hais tseg.

3. Cov Txheej Txheem Txheej Txheem

Cov txheej no feem ntau yog ua los ntawm cov hlau zoo li nyiaj, kub, lossis palladium. Lawv ua hauj lwm raws li txoj kev conductive rau hluav taws xob signals.

4. Cov txheej txheem tiv thaiv

Cov khaubncaws sab nraud povtseg no yog tsim los ntawm cov ntaub ntawv uas muaj kev tiv thaiv siab, xws li ruthenium oxide lossis npib tsib xee-chromium. Lawv yog siv los tsim cov resistors ntawm lub substrate.

5. Dielectric Txheej

Insulating txheej, feem ntau yog ua los ntawm iav los yog ceramic, ntxiv rau cais cov kab hluav taws xob thiab cov khoom siv.

6. Kev tua hluav taws

Tom qab txhua txheej tau thov, lub substrate tau dhau los ua cov txheej txheem tua hluav taws hauv qhov cub kub kub. Cov txheej txheem no sinters cov ntaub ntawv, tsim kom muaj ib tug ruaj khov, integrated qauv.

7. Kev sib xyaw ua ke

Cov khoom siv hluav taws xob xws li resistors, capacitors, thiab txawm tias qee hom khoom siv hluav taws xob tuaj yeem txuas ncaj qha mus rau cov yeeb yaj kiab tuab ceramic substrates. Qhov no ua kom yooj yim cov txheej txheem sib dhos rau cov khoom siv hluav taws xob.

Qhov zoo

Kev koom ua ke siab

Thick zaj duab xis ceramic substrates tso cai rau siab tivthaiv ntom thiab miniaturization ntawm hluav taws xob circuits.

Thermal Management

Cov khoom siv ceramic muab cov thermal conductivity zoo, pab kom dissipate tshav kub ntawm cov khoom.

Kev ntseeg tau

Cov qauv kev sib xyaw ua ke txo tus naj npawb ntawm kev sib tshuam, uas tuaj yeem ua rau muaj kev ntseeg siab ntxiv.

Daim ntawv thov ntawm Thick Film Ceramic Substrates

Hybrid Integrated Circuits (HICs)

Thick film substrates feem ntau yog siv hauv HICs, uas muab cov txiaj ntsig zoo ntawm kev sib koom ua ke (ICs) thiab cov khoom sib cais.

Sensors

Lawv yog siv nyob rau hauv ntau yam ntawm cov sensors, nrog rau lub siab sensors, kub sensors, thiab gas sensors.

Fais fab Electronics

Thick film substrates yog siv nyob rau hauv lub hwj chim modules rau daim ntaub ntawv xws li lub cev muaj zog tsav thiab inverters.

Khoom Properties ntawm Thick Film Ceramic Substrates
